1 ton 3 ton 5t 20 ton European Electric Single Beam Overhead Bridge Cranes For Sale
1. Product Feature:
European single beam overhead crane is a light duty overhead crane designed as European crane standards, eg: FEM, DIN. It has the advantage of smaller dimension, lighter self weight, higher lifting height and so on. Lifting capacity from 1 ton to 20 ton. European type single girder overhead crane has the minimum limiting distance from hook to the wall, lower headroom and more effective working space, etc. It will save more money on the initial construction investment, long term heating fee, air conditioning and other maintenance fee.
2. Technical Information(example):
Single Girder Overhead Crane(10ton)
| Span(m) | 7.5 | 10.5 | 13.5 | 16.5 | 19.5 | 22.5 | 25.5 |
| Working duty | A5 |
| Lifting height(m) | 6, 9, 12 |
| Lifting speed(m/min) | 0.8/5 |
| Trolley weight(kg) | 640 |
| Total weight(kg) | 2696 | 3200 | 4091 | 5307 | 6466 | 7694 | 9309 |
| Max Wheel Load(KN) | 51.85 | 54.44 | 57.7 | 60.83 | 64 | 67.26 | 71.36 |
| Track | P30 |
| Main dimension(mm) | 7.5 | 10.5 | 13.5 | 16.5 | 19.5 | 22.5 | 25.5 |
| Rail top to main top(H) | 908 | 908 | 1008 | 1208 | 1308 | 1358 | 1482 |
| Rail top to hook centre(h) | 465 | 465 | 465 | 365 | 365 | 365 | 345 |
| Hook left limitation(C1) | 675 | 675 | 675 | 675 | 675 | 675 | 695 |
| Hook right limitation(C2) | 1020 |
| Track center to end beam lateral(A) | 100 |
| Wheel base(W) | 2000 | 2000 | 2000 | 2500 | 3000 | 3000 | 3500 |
| Crane width(B) | 2674 | 2674 | 2674 | 3174 | 3674 | 3674 | 4174 |

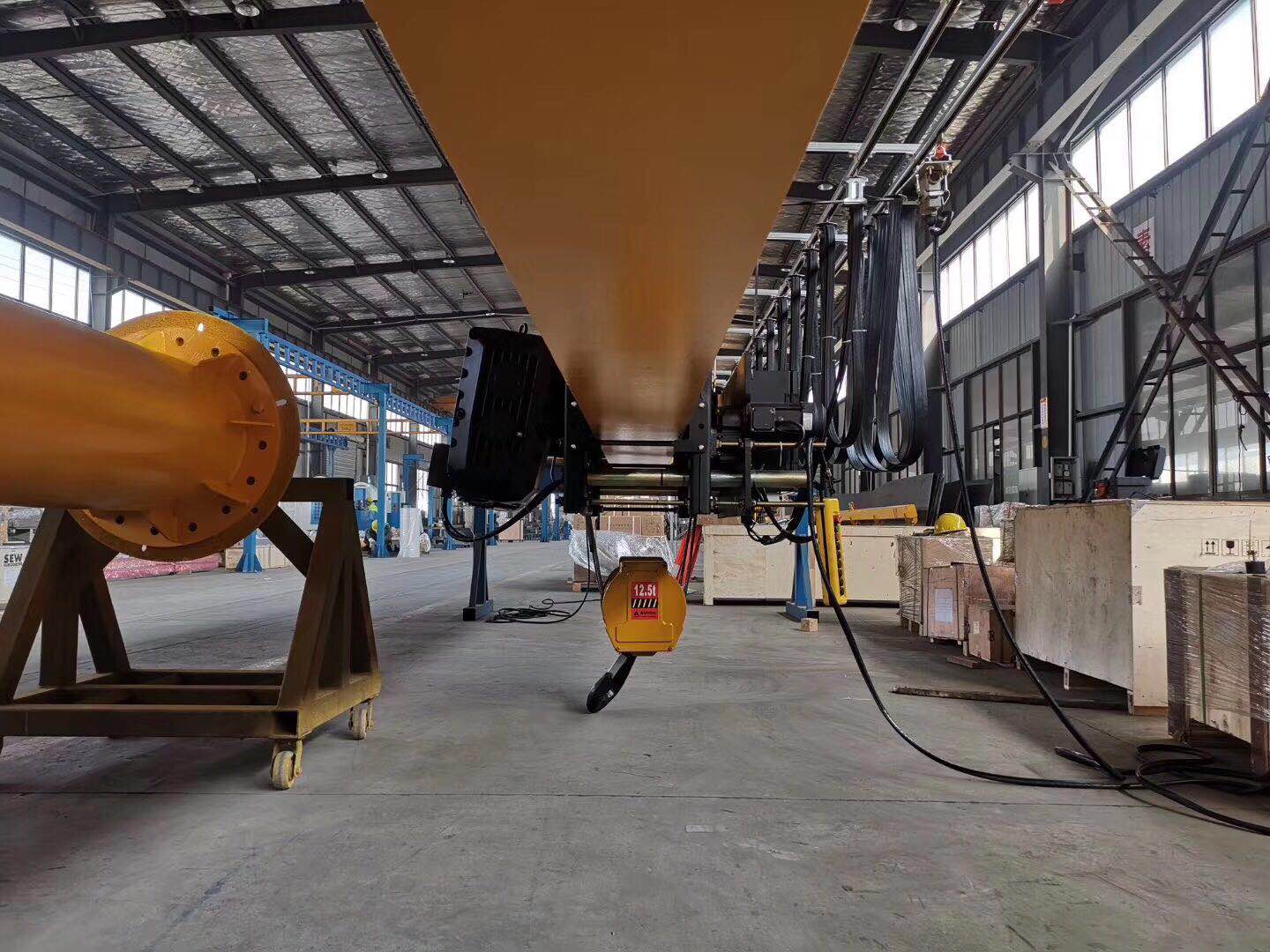

3. Product show:
4. Questions before quotation:
1. capacity?
2. The span of main girder?
3. The lifting height(ground to the main girder)?
4. Single speed or double speed for lifting?
5. Pendant control or remote control or cabin?
6. Power supply?(volt./3p/hz)
7. Traveling length?
7. Any other special requirements?
That will be much helpful if you can supply drawing to us.
